Validating and Unit Testing Web API (2) Route Attribute Parameters

Personally, I like to isolate business rules and/or validations outside of MVC Controllers. In this case, API Controllers. I use ActionFilterAttribute to define my checks on parameters being passed in my MVC Web API routes.

Here’s an example of a WebAPI route with parameter binding:

// GET: /1/employees/AA0000111"
[Route("{WebServiceVersion}/employees/{employeeId}")]
[ValidateEmployeeId]
        public IHttpActionResult GetUser(string employeeid, int WebServiceVersion = 1)
        {
            // GET: Do something with webServiceVersion value like logging.
            var user = _emprepository.GetUser(employeeid);
            return Content(HttpStatusCode.OK, user);
        }

I want to isolate validating employeeid outside of my controller for a couple of reasons:

1) Isolation – You may have multiple cases on validating your parameters. In this case, employeeId can be permutated in different ways specially because it is a string. Other developers can easily get lost on what the action controller is actually doing if you have long code that includes all various validations

2) Good development practice – I prefer to see nice clean code and separation on what my controllers do vs business rules

3) Testing – I can isolate testing on my controllers vs business rules. This is really the motivating factor for me.

That said, let’s take a look at the ActionFilterAttribute further. For more information on this, see:

(NOTE: There are 2 versions of ActionFilterAttribute)

System.Web.Http.Filters

System.Web.Mvc

When unit testing, make sure you’re writing the correct tests for your filter. In this case, I’m using the namespace: System.Web.Http.Filters

public class ValidateEmployeeIdAttribute : ActionFilterAttribute
    {
        public override void OnActionExecuting(HttpActionContext actionContext)
        {
            var employeeid = actionContext.ActionArguments["employeeid"].ToString();
            if (string.IsNullOrEmpty(employeeid) || employeeid.ToLower() == "<somecheck>" ||
                employeeid.ToLower() == "<replace and use other validation such as regex>")
            {
                actionContext.Response = actionContext.Request.CreateResponse(HttpStatusCode.BadRequest,
                    $"Input parameter error, employeeId: {employeeid} -  not specified, null or bad format",
                    actionContext.ControllerContext.Configuration.Formatters.JsonFormatter);
            }
            base.OnActionExecuting(actionContext);
        }
    }

Note in the preceding code for the controller that I decorated the web api action method with: [ValidateEmployeeId]

This instruct the controller to use the custom ActionFilterAttribute that I created above

Testing your custom validate via UNIT Test/s:

For simplicity, I used MSTest that comes with visual studio.

[TestMethod, TestCategory("UserController")]
        public void Validate_EmpId_ActionFilterAttribute()
        {
            var mockactioncontext = new HttpActionContext
            {
                ControllerContext = new HttpControllerContext
                {
                    Request = new HttpRequestMessage()
                },
                ActionArguments = { { "employeeid", "<somecheck>" } }
            };

            mockactioncontext.ControllerContext.Configuration = new HttpConfiguration();
            mockactioncontext.ControllerContext.Configuration.Formatters.Add(new JsonMediaTypeFormatter());

            var filter = new ValidateEmployeeIdAttribute();
            filter.OnActionExecuting(mockactioncontext);
            Assert.IsTrue(mockactioncontext.Response.StatusCode == HttpStatusCode.BadRequest);
        }

At this point, you should have separation of code to validate your “validations” vs controller.

Using fiddler, I can see that whenever I submit a request that has an invalid value for employeeid, I get the correct response:

fiddlertrace

MSTEST TIP: Extension Method/s for TestContext while working on Data Driven Tests.

A very common scenario that developers/testers encounter when writing data driven tests is to print input parameters from data sources. Data driven test can encompass many data sources (sql, .csv, excel, .xml, etc…) and Yes, I was even able to extend MSTests functionality by passing my own custom collection:

MSTEST: EXTENDING DATA DRIVEN TESTS TO USE IENUMERABLE<OBJECT> AS THE DATA SOURCE

https://dondeetan.com/2016/02/18/mstest-extending-data-driven-tests-to-use-ienumerableobject-as-the-data-source/

While there are many implementations to solve this, I wanted to provide (in my opinion) the most easiest and efficient way possible for developers and testers to print out input parameters without leaving the context during test development. Thus, extension methods. What are extension methods? In a high level, extension methods allows you to “extend” or “add” methods to existing types (even types built in the .Net framework) without creating a new class from the derived type. Click here on Extension Methods (C# Programming Guide) more information.

Now that we have good understanding of extension methods, then why not extend the TestContext class which contains all information during test execution? TestContext also contains information around the datarow and datacolumn passed during data driven testing. It’s a simple as calling the datarow during runtime.

TestContext.DataRow["Description"].ToString();

TestConext.DataRow has a property “Table” which you can get all columns during the instance of test execution. At this point, all you need to do is extend TestContext to print input parameters.

public static class Helper
    {
        public static void PrintInput(this TestContext testContext)
        {
            Console.WriteLine($"Total Input Fields: {testContext.DataRow.Table.Columns.Count}");
            var columns = testContext.DataRow.Table.Columns;
            for (var i = 0; i < columns.Count; i++)
            {
                Console.WriteLine($"Field: {columns[i].ColumnName} Value: {testContext.DataRow[i]}");
            }
        }
    }

In your Test Method, all you have to do is just call one line of code:

TestContext.PrintInput();

And the results from that instance test execution:


Great way to show input parameters for debugging purposes!

MSTEST: Extending Data Driven Tests to use IENUMERABLE<Object> as the Data Source

One great feature that I like in NUnit is the capability to use collection types for data driven tests. Meaning, you don’t have to open up an external data source connection, pull data and use it to drive parameters for your tests. With a simple attribute in NUnit, you can drive tests as indicated here:

TestCaseSourceAttribute

http://www.nunit.org/index.php?p=testCaseSource&r=2.5.3

NUnit implementation allows you to enumerate from a collection to data drive your tests. MSTest has the same extensibility and is outlined in the following blog:

Extending the Visual Studio Unit Test Type

http://blogs.msdn.com/b/vstsqualitytools/archive/2009/09/04/extending-the-visual-studio-unit-test-type-part-1.aspx

From this blog, I was able to go through the steps and process how MSTest invokes and passes objects in a test method. When MSTest executes, the flow goes through:

  1. TestClassExtensionAttribute calls : GetExecution()
  2. TestExtensionExecution calls : CreateTestMethodInvoker(TestMethodInvokerContext context)
  3. ITestMethodInvoker calls : Invoke(params object[] parameters)


Throughout this process, you can use custom attributes and utilize attribute properties for passing in test data. Its best that you use custom attributes in the ITestMethodInvoker.Invoke()

In my solution, I want to develop a fast way of invoking IEnumerable<object> as my test data. In this case, I’ll consume custom attributes to provide a classname and methodname to return test data through reflection. I’ll then use that in ITestMethodInvoker.Invoke() to enumerate objects for my tests.

  • ClassName: class holding the method to generate test data
  • DataSourceName: method within the class that generates any test data

Project Setup:

Make sure that you have the following references in your project:

  • Microsoft.VisualStudio.QualityTools.Common.dll
  • Microsoft.VisualStudio.QualityTools.UnitTestFramework
  • Microsoft.VisualStudio.QualityTools.Vsip.dll

These assemblies are included as part of the .Net framework. Simply browse in the references section in your project

The Custom Attribute:

    [global::System.AttributeUsage(AttributeTargets.Method, Inherited = false, AllowMultiple = false)]
    public class EnumurableDataSourceAttribute : Attribute
    {
        public string DataSourceName { get; set; }
        public string ClassName { get; set; }


        public EnumurableDataSourceAttribute(string className, string dataSourceName)
        {
            this.DataSourceName = dataSourceName;
            this.ClassName = className;
        }
    }

Test Class Implementation:

[Serializable]
    public class TestClassCollectionAttribute : TestClassExtensionAttribute
    {
        public override Uri ExtensionId => new Uri("urn:TestClassAttribute");

        public override object GetClientSide()
        {
            return base.GetClientSide();
        }

        public override TestExtensionExecution GetExecution()
        {
            return new TestExtension();
        }
    }

Test Extension:

public class TestExtension : TestExtensionExecution
    {
        public override void Initialize(TestExecution execution)
        {

        }

        public override ITestMethodInvoker CreateTestMethodInvoker(TestMethodInvokerContext context)
        {
            return new TestInvokerMethodCollection(context);
        }

        public override void Dispose()
        {

        }
    }

Test Method Invoker:

public class TestInvokerMethodCollection : ITestMethodInvoker
    {
        private readonly TestMethodInvokerContext _context;

        public TestInvokerMethodCollection(TestMethodInvokerContext context)
        {
            Debug.Assert(context != null);
            _context = context;
        }
        public TestMethodInvokerResult Invoke(params object[] parameters)
        {
            Trace.WriteLine($"Begin Invoke:Test Method Name: {_context.TestMethodInfo.Name}");
            Assembly testMethodAssembly = _context.TestMethodInfo.DeclaringType.Assembly;
            object[] datasourceattributes = _context.TestMethodInfo.GetCustomAttributes(typeof (EnumurableDataSourceAttribute), false);
            Type getclasstype = testMethodAssembly.GetType(((EnumurableDataSourceAttribute)datasourceattributes[0]).ClassName);
            MethodInfo getmethodforobjects = getclasstype.GetMethod(((EnumurableDataSourceAttribute) datasourceattributes[0]).DataSourceName);
            /*
            Use the line below if there are parameters that needs to be passed to the method.
            ParameterInfo[] methodparameters = getmethodforobjects.GetParameters();
            To instantiate a new concreate class
            object classInstance = Activator.CreateInstance(getclasstype, null);
            Invoke(null,null) = The first null parameter specifies whether it's a static class or not. For static, leave it null
            IEnumerable<object> enmeruableobjects = getmethodforobjects.Invoke(classInstance, null) as IEnumerable<object>;
            */
            IEnumerable<object> enmeruableobjects = getmethodforobjects.Invoke(null, null) as IEnumerable<object>;
            var testresults = new TestResults();
            //This is where each object will be enumarated for the test method.
            foreach (var obj in enmeruableobjects)
            {
                testresults.AddTestResult(_context.InnerInvoker.Invoke(obj), new object[1] { obj });
            }
            var output = testresults.GetAllResults();
            _context.TestContext.WriteLine(output.ExtensionResult.ToString());
            return output;
        }
    }

Test Project Setup:

Once, you’ve successfully build your assembly project (custom TestClass attribute), you need to register the custom extension class in your local machine. This is a custom test assembly/adapter so, we’ll need to:

  • Make changes to the registry
  • Add the compiled assembly in the install directory for your VS version. In my case, I’m using Visual Studio 2015 so your custom assemblies will be copied to:  C:\Program Files (x86)\Microsoft Visual Studio 14.0\Common7\IDE\PrivateAssemblies

Luckily, there’s a batch script that lets you do all of these steps. The only thing you need to do is:

  • Change the version of VS to your working VS edition
  • Change the assembly namespace and class reference

The deployment script: (You can also download the deployment script from this blog. Scroll at the bottom of the blog post)

http://blogs.msdn.com/b/qingsongyao/archive/2012/03/28/examples-of-mstest-extension.aspx?CommentPosted=true

@echo off
::------------------------------------------------
:: Install a MSTest unit test type extension
:: which defines a new test class attribute
:: and how to execute its test methods and
:: interpret results.
::
:: NOTE: Only VS needs this and the registration done; the xcopyable mstest uses
:: TestTools.xml virtualized registry file updated which we already have done in sd
::------------------------------------------------

setlocal

:: All the files we need to copy or register are realtive to this script folder
set extdir=%~dp0

:: Get 32 or 64-bit OS
set win64=0
if not "%ProgramFiles(x86)%" == "" set win64=1
if %win64% == 1 (
    set vs14Key=HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\VisualStudio\14.0
) else (
    set vs14Key=HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\VisualStudio\14.0
)

:: Get the VS installaton path from the Registry
for /f "tokens=2*" %%i in ('reg.exe query %vs14Key% /v InstallDir') do set vsinstalldir=%%j


:: Display some info
echo.
echo =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-==-=-=-=-=-=-=-=-=-=-
echo Please ensure that you are running with adminstrator privileges
echo to copy into the Visual Studio installation folder add keys to the Registry.
echo Any access denied messages probably means you are not.
echo =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-==-=-=-=-=-=-=-=-=-=-
echo.
echo 64-bit OS: %win64%
echo Visual Studio 14.0 regkey:   %vs14Key%
echo Visual Studio 14.0 IDE dir:  %vsinstalldir%

::
:: Copy the SSM test type extension assembly to the VS private assemblies folder
::

set extdll=AAG.Test.Core.CustomTestExtenstions.dll
set vsprivate=%vsinstalldir%PrivateAssemblies
echo Copying to VS PrivateAssemblies: %vsprivate%\%extdll%
copy /Y %extdir%%extdll% "%vsprivate%\%extdll%"

::
:: Register the extension with mstest as a known test type
:: (SSM has two currently, both are in the same assembly)
::

echo Registering the unit test types extensions for use in VS' MSTest

:: Keys Only for 64-bit
if %win64% == 1 (
    set vs14ExtKey64=HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\VisualStudio\14.0\EnterpriseTools\QualityTools\TestTypes\{13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b}\TestTypeExtensions
    set vs14_configExtKey64=HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\VisualStudio\14.0_Config\EnterpriseTools\QualityTools\TestTypes\{13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b}\TestTypeExtensions
)

:: Keys for both 32 and 64-bit
set vs14ExtKey=HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\VisualStudio\14.0\EnterpriseTools\QualityTools\TestTypes\{13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b}\TestTypeExtensions
set vs14_configExtKey=HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\VisualStudio\14.0_Config\EnterpriseTools\QualityTools\TestTypes\{13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b}\TestTypeExtensions

:: Register the TestClassCollectionAttribute
set regAttrName=TestClassCollectionAttribute
set regProvider="AAG.Test.Core.CustomTestExtenstions.TestClassCollectionAttribute, AAG.Test.Core.CustomTestExtenstions"
if  %win64% == 1 (
    reg add %vs14ExtKey64%\%regAttrName%        /f /v AttributeProvider /d %regProvider%
    reg add %vs14_ConfigExtKey64%\%regAttrName% /f /v AttributeProvider /d %regProvider%
)
reg add %vs14ExtKey%\%regAttrName%        /f /v AttributeProvider /d %regProvider%
reg add %vs14_ConfigExtKey%\%regAttrName% /f /v AttributeProvider /d %regProvider%

:eof
endlocal
exit /b %errorlevel%

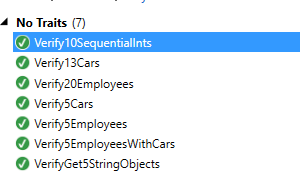

Creating the tests in VS:

In your test project, add a reference to the custom MSTest Assemblies


In your tests, make sure to use the custom test class and enumerator attribute that we previously defined. Here’s a sample of these test methods that uses different IEnumerable objects.

[TestClassCollection]
    public class MethodCollectionTests
    {

        public TestContext TestContext { get; set; }

        [TestInitialize()]
        public void TestInit()
        {
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get5Employees")]
        public void Verify5Employees(Employee employee)
        {
            Assert.IsFalse(String.IsNullOrEmpty(employee.Displayname));
            Console.WriteLine($"Employee FirstName: {employee.Displayname}");
            TestContext.WriteLine($"Test Case Passed for {TestContext.TestName} with Data: {employee.Displayname}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get20Employees")]
        public void Verify20Employees(Employee employee)
        {
            Assert.IsFalse(String.IsNullOrEmpty(employee.Displayname));
            Console.WriteLine($"Employee FirstName: {employee.Displayname}");
            TestContext.WriteLine($"Test Case Passed for {TestContext.TestName} with Data: {employee.Displayname}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get5Cars")]
        public void Verify5Cars(Car car)
        {
            Assert.IsNotNull(car);
            Assert.IsFalse(String.IsNullOrEmpty(car.Description));
            Console.WriteLine($"Car Info: Type: {car.CarType} Cost: {car.Cost.ToString("C")}");
            TestContext.WriteLine($"Test Case Passed for {TestContext.TestName} with Data: {car.CarType} with Id: {car.Id}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get13Cars")]
        public void Verify13Cars(Car car)
        {
            Assert.IsNotNull(car);
            Assert.IsFalse(String.IsNullOrEmpty(car.Description));
            Console.WriteLine($"Car Info: Type: {car.CarType} Cost: {car.Cost.ToString("C")}");
            TestContext.WriteLine($"Test Case Passed for {TestContext.TestName} with Data: {car.CarType} with Id: {car.Id}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get5EmployeesWithCars")]
        public void Verify5EmployeesWithCars(EmployeeWithCar employeeWithCar)
        {
            Assert.IsNotNull(employeeWithCar);
            Assert.IsFalse(String.IsNullOrEmpty(employeeWithCar.Id));
            Assert.IsNotNull(employeeWithCar.Car);
            Assert.IsNotNull(employeeWithCar.Employee);
            TestContext.WriteLine($"Test Case Passed for {TestContext.TestName} with Data: Name: {employeeWithCar.Employee.Displayname} Car: {employeeWithCar.Car.CarType} with Id: {employeeWithCar.Employee.Id}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get10SequentialInts")]
        public void Verify10SequentialInts(int intcurrent)
        {
            Assert.IsInstanceOfType(intcurrent, typeof(int));
            TestContext.WriteLine($"Current int Value: {intcurrent}");
        }

        [TestMethod]
        [EnumurableDataSourceAttribute("CustomTestExtenstions.Tests.Helper.Helper", "Get5StringObjects")]
        public void VerifyGet5StringObjects(string stringcurrent)
        {
            Assert.IsInstanceOfType(stringcurrent, typeof(string));
            TestContext.WriteLine($"Current string Value: {stringcurrent}");
        }
    }

The Helper class defines the helper methods to generate test data:

public static class Helper
    {
        public static IEnumerable<object> Get5Employees()
        {
            var employees = GenerateData.GetEmployees(5);
            return (IEnumerable<object>) employees;
        }

        public static IEnumerable<object> Get20Employees()
        {
            var employees = GenerateData.GetEmployees(20);
            return (IEnumerable<object>) employees;
        }
        public static IEnumerable<object> Get5Cars()
        {
            var cars = GenerateData.GetCars(5);
            return (IEnumerable<object>) cars;
        }

        public static IEnumerable<object> Get13Cars()
        {
            var cars = GenerateData.GetCars(13);
            return (IEnumerable<object>)cars;
        }

        public static IEnumerable<object> Get5EmployeesWithCars()
        {
            var cars = GenerateData.GetCars(5);
            var employees = GenerateData.GetEmployees(5);
            var employeeswithcars = new List<EmployeeWithCar>();
            for (int i = 0; i < cars.Count; i++)
            {
                var employeewithcar = new EmployeeWithCar
                {
                    Car = cars[i],
                    Employee = employees[i]
                };
                employeeswithcars.Add(employeewithcar);
            }
            return (IEnumerable<object>)employeeswithcars;
        }

        public static IEnumerable<object> Get10SequentialInts()
        {
            var intobjects = new int[] {1, 2, 3, 4, 5,6,7,8,9, 10};
            return (IEnumerable<object>) intobjects.Cast<object>();
        }

        public static IEnumerable<object> Get5StringObjects()
        {
            var stringobjects = new string[] {"String1", "String2", "String3", "String4", "String5" };
            return (IEnumerable<object>)stringobjects.Cast<object>();
        }
    }

The Execution results!


And the output for each of the result!
